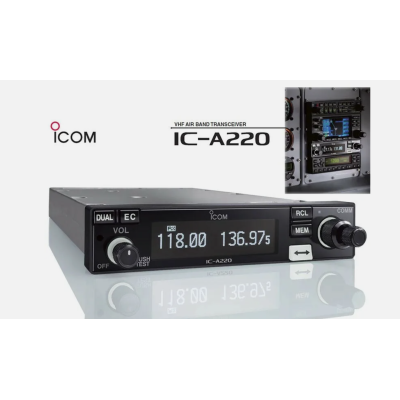

ICOM IC-A220 VHF AIR BAND TRANSCEIVER

DOWNLOAD BROACHER

ICOM IC-A220 VHF AIR BAND TRANSCEIVER

SPECIFICATION:-

Frequency range  :  118.000–136.992 MHz

Frequency stability  : ±5 ppm

Number of memory channels  : 20 regular, 50 group memory, 10 GPS, 20 history, 10 weather

Dimensions (W × H × D,
Projections not included)   :  160 × 34 × 271 mm;
6.3 × 1.34 × 10.67 in

Output power   :  8 W (Carrier power)

Weight (approximately)   :  1.0 kg; 2.2 lb

FEATURES :

• High Visibility OLED Screen
• Large Switch Buttons
• Auto Squelch Function
• Quick Squelch Adjustment
• GPS Memory Function
• Optional Power Supply PS-80 for the Ground
• Intercom Function
• Remote Control Capability
• 8.33 kHz Channel Spacing
• Memory Channels
•


OTHER FEATURES :

• Dual watch and priority watch functions
• One touch access to 121.5 MHz emergency frequency
• Side tone function for monitoring your voice with a headset
• ANL (Automatic noise limiter) function reduces pulse type noise
• Remote control capability
• PC programming capability
• Dial lock and panel lock
• Time-out-timer
• D-SUB 25-pin connector and MIL-Spec M39029/63-368 compliant socket pins
• Slim 33 mm (1.3 inch) height can be installed in a limited panel space
• Two types of menu mode; settings menu and configuration menu
• Both 13.8 V and 27.5 V electrical systems compatible

SUPPLIED ACCESSORIES :

• Mounting bracket kit

MADE IN JAPAN
